Application | Alloy Grade | Status | Thickness (mm) | Width(mm) |
Pharmaceutical foil | 8079/8011/8021 | O/H18 | 0.01-0.07 | 200-1960 |
Heat seal foil | 8079/8011 | O | 0.02-0.05 | 200-1960 |
Hose Aluminum foil | 8079 | O | 0.01-0.02 | 200-1960 |
Container aluminum foil | 3104/5052 | O/H24 | 0.05-0.1 | 200-1960 |
Batter Aluminum foil | 1235/1070/1060 | H18 | 0.015-0.02 | 200-1960 |
Chocolate Aluminum foil | 8011 | O/H22 | 0.01-0.015 | 200-1960 |
Label Aluminum foil | 1235 | O | 0.01-0.05 | 200-1960 |
Cigarrete Aluminum foil | 1235/8079 | O | 0.006-0.007 | 200-1960 |
Gold card Aluminum foil | 1235/8079 | O | 0.006-0.007 | 200-1960 |

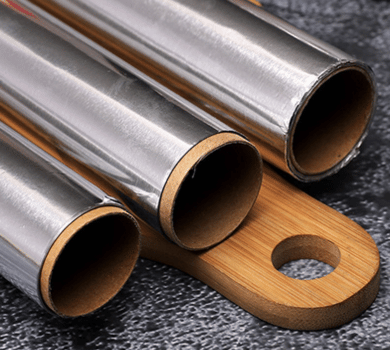

Cooking Aluminum foil | 1235/8079 | O | 0.006-0.007 | 200-1960 |
Soft package Aluminum foil | 1235/8079 | O | 0.006-0.03 | 200-1960 |
Antiseptic Aluminum foil | 1235/8079 | O | 0.006-0.007 | 200-1960 |

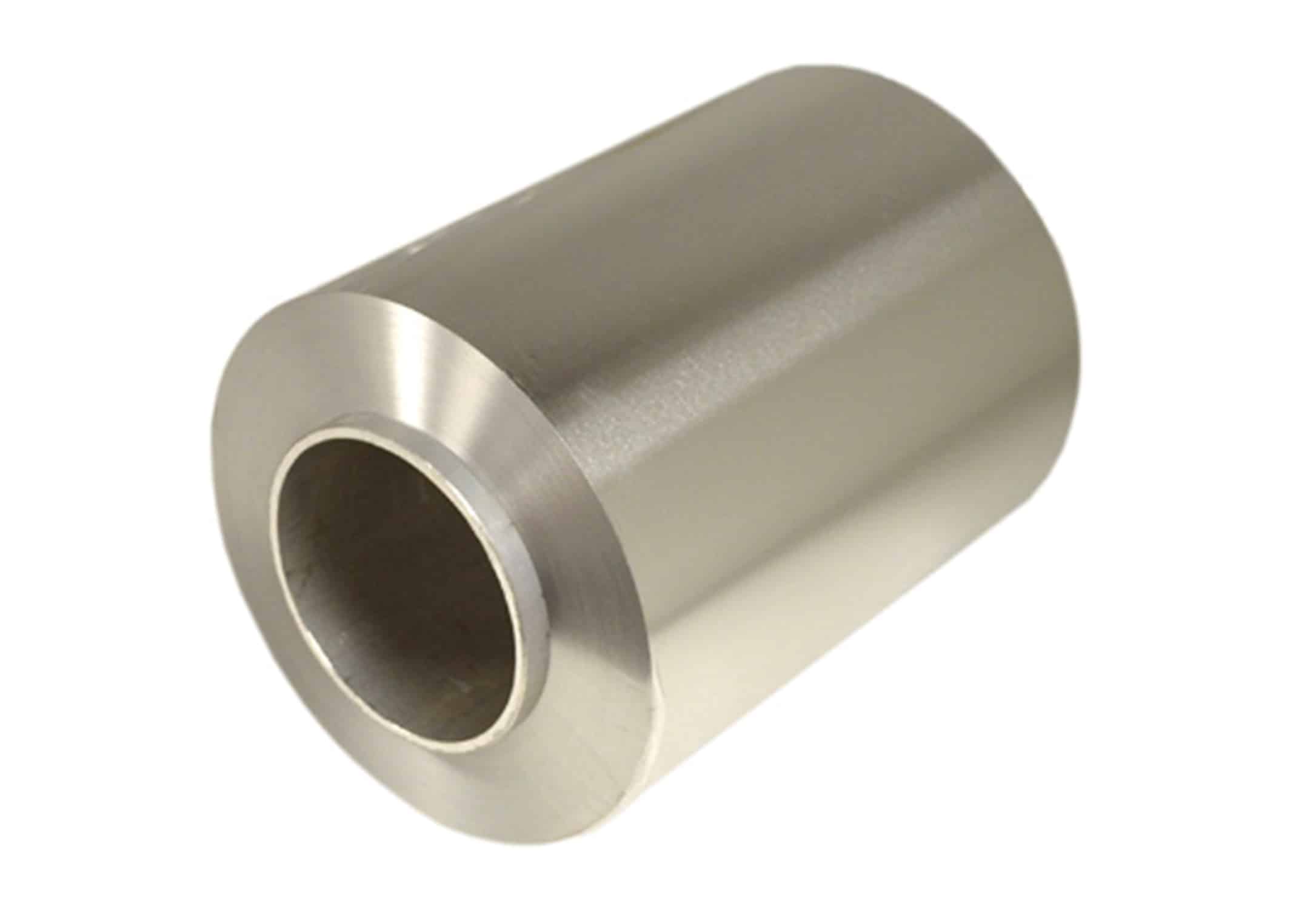

Aluminum Foil 1145/1235/1100 O Temper is mill-finished and is an excellent conductor of heat and electricity. This aluminum foil meets ASTM B479 and QQ-A-1876.
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: | Others: | Al: Min. |
Each | Total | ||||||||||
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | – | 0.05 | 0.03 | 0.03 | – | 99.5 |
1050A | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | – | 0.07 | 0.05 | 0.03 | – | 99.5 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | – | 0.05 | 0.03 | 0.03 | – | 99.6 |
1100 | 0.95 Si + Fe | 0.05~0.20 | 0.05 | – | – | 0.1 | – | 0.05 | 0.15 | 99 | |
1235 | 0.65 Si + Fe | 0.05 | 0.05 | 0.05 | 0.06 | 99.35 |
3000 series, with Mn, added, it has lower ductility and is suitable for cold processing like rolling and extruding but not used in casting and forging. 3 series aluminum alloy with manganese as the main alloy element (manganese content is 1.0-1.5%). It can not be strengthened by heat treatment, with good corrosion resistance, good welding performance, and good plasticity (close to super aluminum alloy).
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: | Others: | Al: Min. |
Each | Total | ||||||||||
3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | – | – | 0.1 | – | 0.05 | 0.15 | remainder |
3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | – | 0.25 | – | 0.05 | 0.15 | remainder |
3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | remainder |
3105 | 0.6 | 0.7 | 0.3 | 0.3~0.8 | 0.2~0.8 | 0.2 | 0.4 | 0.1 | 0.05 | 0.15 | remainder |

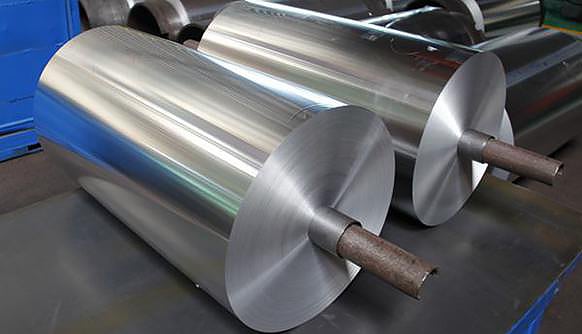

Aluminum alloy 8011 is widely used in composite panel baseband, it not only keep food fresh, but also protect the food from bacteria. it is main used for medical packaging
Grade | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Al |
8011 | 0.5-0.9 | 0.6-1 | 0.1 | 0.2 | 0.05 | 0.05 | – | 0.1 | remaining |
8021 | 0.5-0.9 | 0.6-1 | 0.1 | 0.2 | 0.05 | 0.05 | 0.05 | 0.1 | remaining |
8079 | 0.05-0.3 | 0.7-1.5 | 0.05 | 0.1 | 0.05 | 0.05 | – | 0.05 | remaining |
